Diffraction project datasets 10173191_2hti

  • Method: MAD
  • Resolution: 2.5 Å
  • Space group: P 61 2 2
Download all images (5.4 GB)

PDB website for 2HTI
PDB validation report for 2HTI

doi:10.18430/M32HTI

Project details

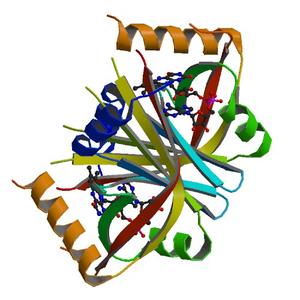

Title CRYSTAL STRUCTURE OF A FLAVIN-NUCLEOTIDE-BINDING PROTEIN (BH_0577) FROM BACILLUS HALODURANS AT 2.50 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.21 / 0.26
Unit cell edges [Å] 72.17 x 72.17 x 129.98
Unit cell angles [°] 90.0, 90.0, 120.0

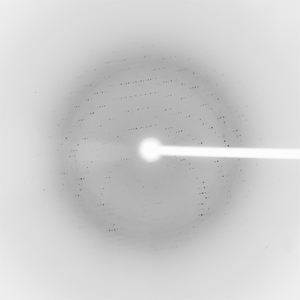

Dataset 26257_1_E1_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 311.0
Wavelength [Å] 0.97934
Experiment Date 2006-06-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

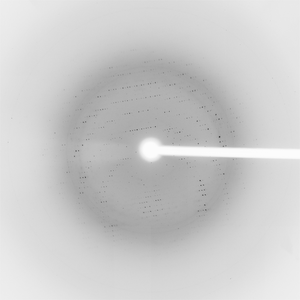

Dataset 26257_1_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 311.0
Wavelength [Å] 0.92522
Experiment Date 2006-06-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

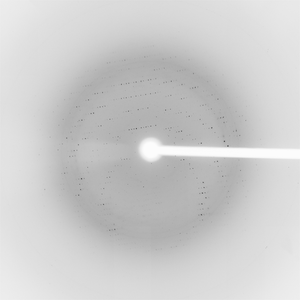

Dataset 26257_2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 311.0
Wavelength [Å] 0.97920
Experiment Date 2006-06-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
