Diffraction project datasets 17135349_1vjg

  • Method: Molecular Replacement
  • Resolution: 2.01 Å
  • Space group: P 32 2 1
Download all images (2.4 GB)

PDB website for 1VJG
PDB validation report for 1VJG

doi:10.18430/M31VJG

Project details

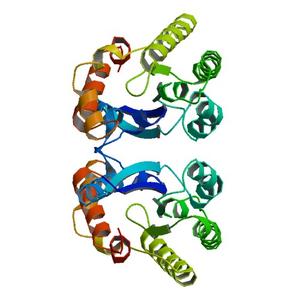

Title Crystal structure of a gdsl-like lipase (alr1529) from nostoc sp. pcc 7120 at 2.01 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.22
Unit cell edges [Å] 56.19 x 56.19 x 129.32
Unit cell angles [°] 90.0, 90.0, 120.0

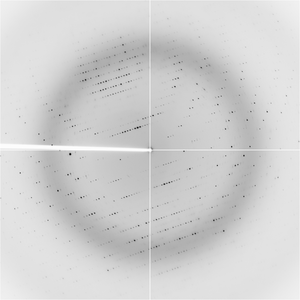

Dataset T1023_3_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] -58.0
Wavelength [Å] 0.98010
Experiment Date 2003-07-13
Equipment 8.2.1 at ALS (Advanced Light Source)

Dataset T1023_4_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] -58.0
Wavelength [Å] 0.99990
Experiment Date 2003-07-13
Equipment 8.2.1 at ALS (Advanced Light Source)

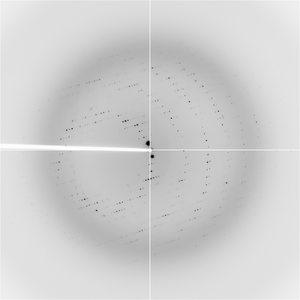

Dataset T1023_5_###.img details

Number of frames 60 (1 - 60)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] -74.0
Wavelength [Å] 0.97990
Experiment Date 2003-07-13
Equipment 8.2.1 at ALS (Advanced Light Source)

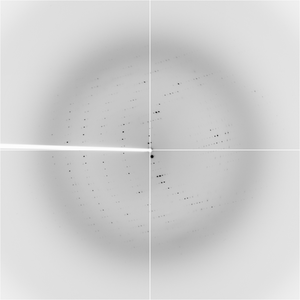

Dataset T1023_6_###.img details

Number of frames 30 (1 - 30)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] -13.0
Wavelength [Å] 0.97990
Experiment Date 2003-07-13
Equipment 8.2.1 at ALS (Advanced Light Source)
