Diffraction project datasets 1790429_1vk6

  • Method: Molecular Replacement
  • Resolution: 2.2 Å
  • Space group: P 65 2 2
Download all images (659.2 MB)

PDB website for 1VK6
PDB validation report for 1VK6

doi:10.18430/M31VK6

Project details

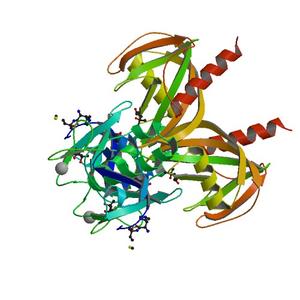

Title Crystal structure of NADH pyrophosphatase (1790429) from Escherichia coli k12 at 2.20 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.22
Unit cell edges [Å] 127.32 x 127.32 x 108.40
Unit cell angles [°] 90.0, 90.0, 120.0

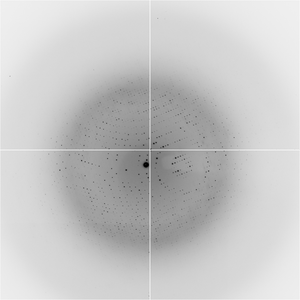

Dataset T1855_3_###.img details

Number of frames 42 (1 - 42)
Distance [mm] 170.0
Oscillation width [°] 1.00
Phi [°] 232.0
Wavelength [Å] 1.11587
Equipment 8.3.1 at ALS (Advanced Light Source)

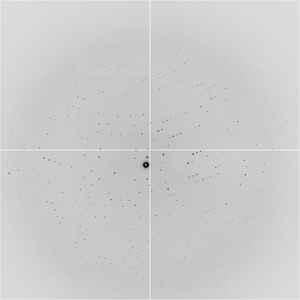

Dataset T1855_4_###.img details

Number of frames 42 (1 - 42)
Distance [mm] 270.0
Oscillation width [°] 1.00
Phi [°] 232.0
Wavelength [Å] 1.11587
Equipment 8.3.1 at ALS (Advanced Light Source)

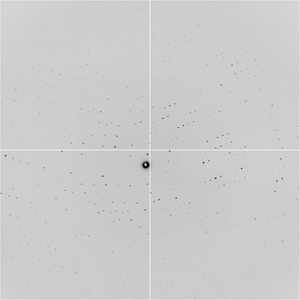

Dataset T1855_5_###.img details

Number of frames 21 (1 - 21)
Distance [mm] 370.0
Oscillation width [°] 2.00
Phi [°] 232.0
Wavelength [Å] 1.11587
Equipment 8.3.1 at ALS (Advanced Light Source)
