Diffraction project datasets 2650543_1vp8
Project details
| Title |

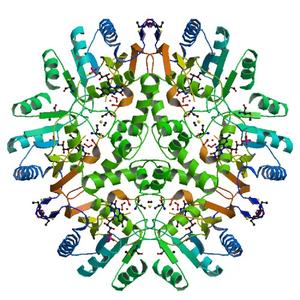

CRYSTAL STRUCTURE OF an alpha/beta domain of a putative pyruvate kinase (AF0103) FROM ARCHAEOGLOBUS FULGIDUS DSM 4304 AT 1.30 A RESOLUTION |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.15 / 0.17 |
| Unit cell edges [Å] |
109.65 x
109.65 x
76.45
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

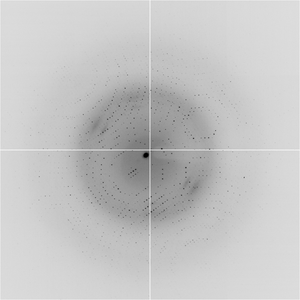

Dataset 11921_3_E1_###.img details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
150.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
226.0 |
| Wavelength [Å] |
0.97967 |
| Experiment Date |
2004-08-28 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|

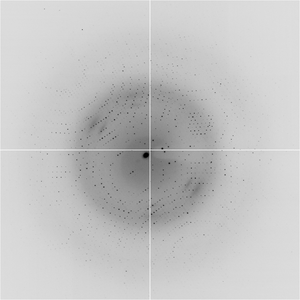

Dataset 11921_3_E2_###.img details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
150.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
226.0 |
| Wavelength [Å] |
1.01987 |
| Experiment Date |
2004-08-28 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|

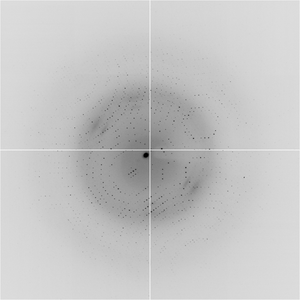

Dataset 11921_3_E3_###.img details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
150.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
226.0 |
| Wavelength [Å] |
0.97955 |
| Experiment Date |
2004-08-28 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|

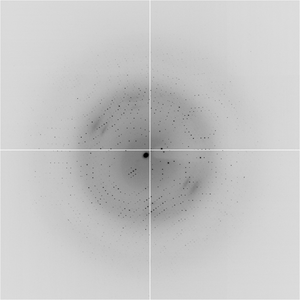

Dataset 11921_4_E1_###.img details
| Number of frames |
60 (1 - 60) |
| Distance [mm] |
150.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
226.0 |
| Wavelength [Å] |
0.97967 |
| Experiment Date |
2004-08-28 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|

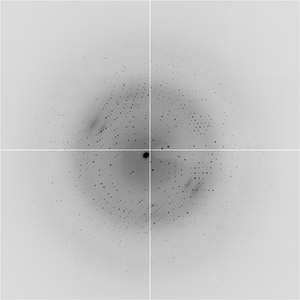

Dataset 11921_4_E2_###.img details
| Number of frames |
58 (1 - 58) |
| Distance [mm] |
150.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
226.0 |
| Wavelength [Å] |
1.01987 |
| Experiment Date |
2004-08-28 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|

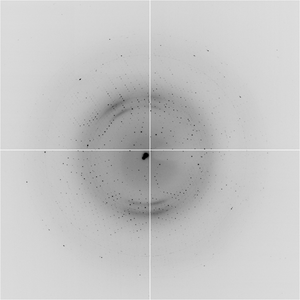

Dataset 11921_5_E1_###.img details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
150.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
286.0 |
| Wavelength [Å] |
0.97966 |
| Experiment Date |
2004-08-28 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|

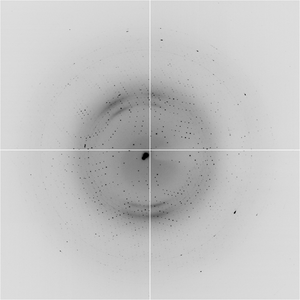

Dataset 11921_5_E2_###.img details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
150.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
286.0 |
| Wavelength [Å] |
1.01987 |
| Experiment Date |
2004-08-28 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|
Dataset 11921_5_E3_###.img details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
150.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
286.0 |
| Wavelength [Å] |
0.97955 |
| Experiment Date |
2004-08-28 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|

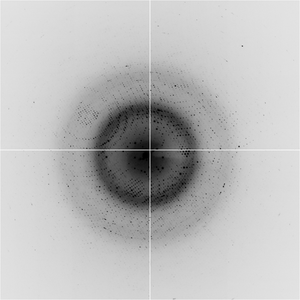

Dataset 11921_6_###.img details
| Number of frames |
241 (1 - 241) |
| Distance [mm] |
110.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
219.0 |
| Wavelength [Å] |
1.00003 |
| Experiment Date |
2004-08-28 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|

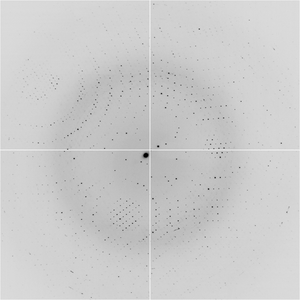

Dataset 11921_7_###.img details
| Number of frames |
60 (1 - 60) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
219.0 |
| Wavelength [Å] |
1.00004 |
| Experiment Date |
2004-08-28 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|
