Diffraction project datasets 3r90
- Resolution: 1.7 Å
- Space group: P 31
PDB website for 3R90
PDB validation report for 3R90
doi:10.18430/m33r90
Project details

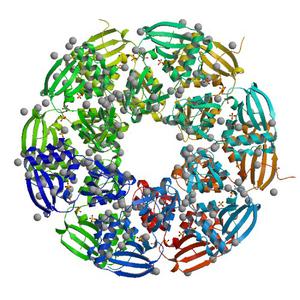

| Title | Crystal structure of Malignant T cell-amplified sequence 1 protein |
| Authors | Hong, B., Dimov, S., Tempel, W., Tong, Y., Wernimont, A.K., Arrowsmith, C.H., Edwards, A.M., Bountra, C., Weigelt, J., Park, H., Structural Genomics Consortium (SGC) |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 115.59 x 115.59 x 157.79 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

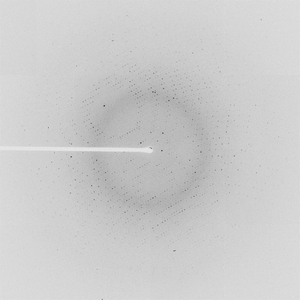

Dataset p1_1.#### details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Wavelength [Å] | 0.97944 |
| Experiment Date | 2011-03-11 |
| Equipment | 23-ID-D at APS (Advanced Photon Source) |

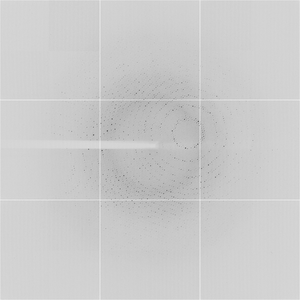

Dataset r1.####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -120.0 |
| Phi [°] | -0.0178 |
| Wavelength [Å] | 0.97901 |
| Experiment Date | 2011-02-24 |
| Equipment | 23-ID-D at APS (Advanced Photon Source) |
