Diffraction project datasets 4N67

  • Method: Molecular Replacement
  • Resolution: 1.55 Å
  • Space group: P 21 21 21
Download all images (695.7 MB)

PDB website for 4N67
PDB validation report for 4N67

doi:10.18430/M34N67

Project details

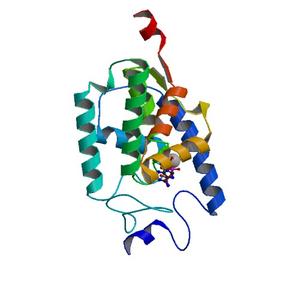

Title Crystal Structure of the N-terminal Fic Domain of a Putative Cell Filamentation protein (VirB-translocated Bep effector protein) with bound ADP from Bartonella quintana
Authors Dranow, D.M., Abendroth, J., Edwards, T.E., Lorimer, D.
R / Rfree 0.17 / 0.19
Unit cell edges [Å] 40.45 x 64.07 x 97.60
Unit cell angles [°] 90.0, 90.0, 90.0

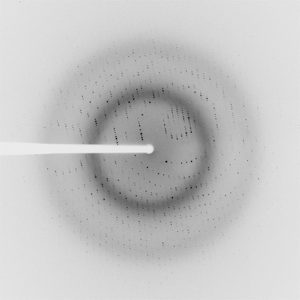

Dataset rgd7-9.### details

Number of frames 150 (1 - 150)
Distance [mm] 150.0
Oscillation width [°] 1.00
Phi [°] 45.0
Wavelength [Å] 0.97872
Experiment Date 2013-10-03
Equipment 21-ID-F at APS (Advanced Photon Source)
