Diffraction project datasets 6aqy
- Resolution: 2.55 Å
- Space group: P 1 21 1
PDB website for 6AQY
PDB validation report for 6AQY
doi:10.18430/M36AQY
Project details

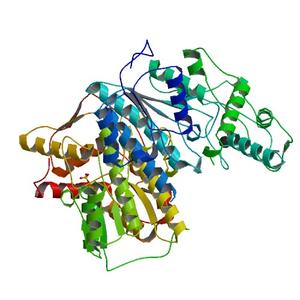

| Title | Crystal structure of a gdp-l-fucose synthetase from Naegleria fowleri |
| Authors | Edwards, T.E., Dranow, D.M., Lorimer, D.D., Seattle Structural Genomics Center for Infectious Disease |
| R / Rfree | 0.19 / 0.24 |
| Unit cell edges [Å] | 99.73 x 102.10 x 121.82 |
| Unit cell angles [°] | 90.0, 107.6, 90.0 |

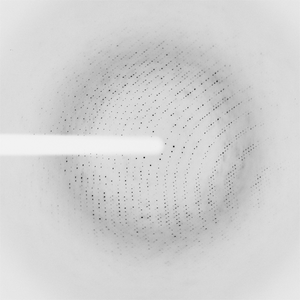

Dataset ltv3-1.### details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 325.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 95.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2017-08-07 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |

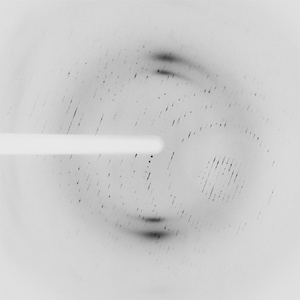

Dataset ltv3-1a.### details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 325.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -90.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2017-08-07 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
