Diffraction project datasets 6cxm
- Resolution: 2.65 Å
- Space group: P 1 21 1
PDB website for 6CXM
PDB validation report for 6CXM
doi:10.18430/M36CXM
Project details

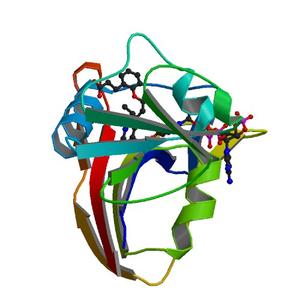

| Title | Crystal structure of a dihydrofolate reductase from Mycobacterium smegmatis in complex with NADP and P218 |
| Authors | Edwards, T.E., Abendroth, J., Lorimer, D.D., Horanyi, P.S., Seattle Structural Genomics Center for Infectious Disease |
| R / Rfree | 0.20 / 0.25 |
| Unit cell edges [Å] | 63.25 x 40.30 x 67.22 |
| Unit cell angles [°] | 90.0, 93.9, 90.0 |

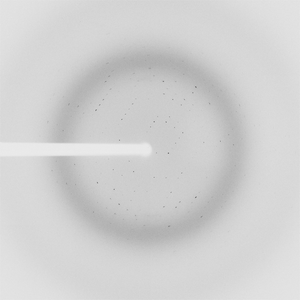

Dataset vsf3-2.### details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 36.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2018-03-15 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
