Diffraction project datasets 6nok
- Resolution: 1.69 Å
- Space group: P 1 21 1
PDB website for 6NOK
PDB validation report for 6NOK
doi:10.18430/m36nok
Project details

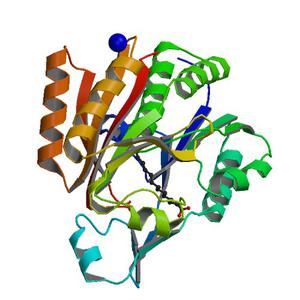

| Title | The X-ray crystal structure of Streptococcus pneumoniae Fatty Acid Kinase (Fak) B1 protein loaded with myristic acid (C14:0) to 1.69 Angstrom resolution |
| Authors | Cuypers, M.G., Gullett, J.M., Subramanian, C., White, S.W., Rock, C.O. |
| R / Rfree | 0.15 / 0.20 |
| Unit cell edges [Å] | 37.56 x 66.32 x 46.95 |
| Unit cell angles [°] | 90.0, 95.8, 90.0 |

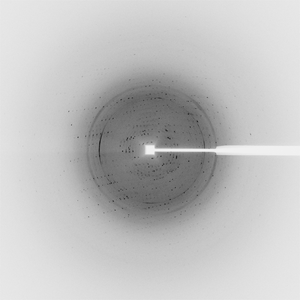

Dataset SW-1_Pn10.#### details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 237.0 |
| Oscillation width [°] | 0.50 |
| Wavelength [Å] | 1.00000 |
| Experiment Date | 2018-12-08 |
| Equipment | 22-BM at APS (Advanced Photon Source) |

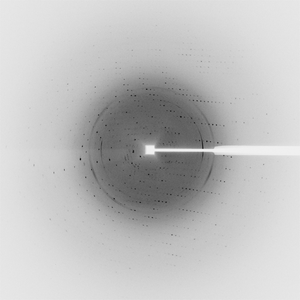

Dataset SW-1_Pn10_r4.#### details
| Number of frames | 21 (1 - 21) |
| Distance [mm] | 230.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 180.0 |
| Wavelength [Å] | 1.00000 |
| Experiment Date | 2018-12-08 |
| Equipment | 22-BM at APS (Advanced Photon Source) |

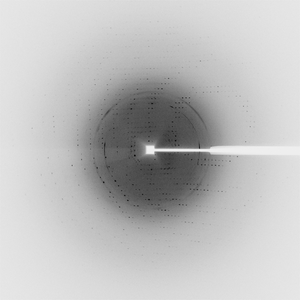

Dataset SW-1_Pn10_r5.#### details
| Number of frames | 179 (22 - 200) |
| Distance [mm] | 215.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 201.0 |
| Wavelength [Å] | 1.00000 |
| Experiment Date | 2018-12-08 |
| Equipment | 22-BM at APS (Advanced Photon Source) |
