Diffraction project datasets 6v3p
- Resolution: 3.25 Å
- Space group: I 41 2 2
PDB website for 6V3P
PDB validation report for 6V3P
doi:10.18430/m36v3p
Project details

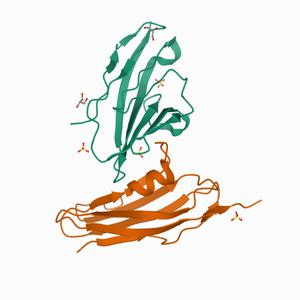

| Title | The BIgI domain of beta protein from S. agalactiae bound to CEACAM1 |
| Authors | Bonsor, D.A., McCarthy, A.J. |
| R / Rfree | 0.22 / 0.24 |
| Unit cell edges [Å] | 131.62 x 131.62 x 257.07 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

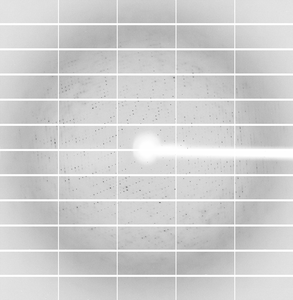

Dataset E4_1_#####.cbf details
| Number of frames | 999 (1 - 999) |
| Distance [mm] | 600.0 |
| Oscillation width [°] | 0.15 |
| Phi [°] | 360.0 |
| Wavelength [Å] | 0.97946 |
| Experiment Date | 2018-11-10 |
| Equipment | BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
