Diffraction project datasets C.KN13612A_5cag

  • Method: MAD
  • Resolution: 3.0 Å
  • Space group: P 65 2 2
Download all images (2.0 GB)

PDB website for 5CAG
PDB validation report for 5CAG

doi:10.18430/M35CAG

Project details

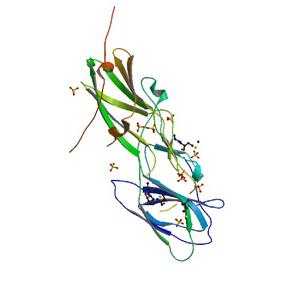

Title Crystal structure of a putative adhesin (BACOVA_02677) from Bacteroides ovatus ATCC 8483 at 3.00 A resolution (PSI Community Target, Nakayama)
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.19 / 0.21
Unit cell edges [Å] 98.39 x 98.39 x 217.04
Unit cell angles [°] 90.0, 90.0, 120.0

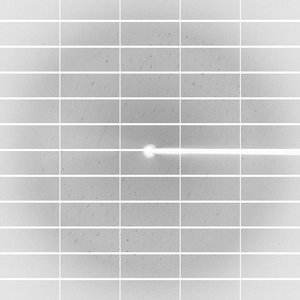

Dataset 201470_1_E1_#####.cbf details

Number of frames 225 (1 - 225)
Distance [mm] 580.0
Oscillation width [°] 0.40
Phi [°] 137.0
Wavelength [Å] 0.97940
Experiment Date 2014-07-28
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

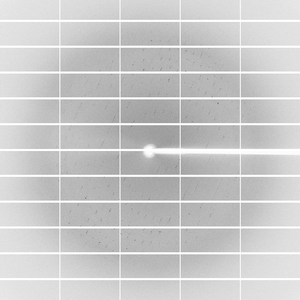

Dataset 201470_1_E2_#####.cbf details

Number of frames 225 (1 - 225)
Distance [mm] 580.0
Oscillation width [°] 0.40
Phi [°] 137.0
Wavelength [Å] 0.91160
Experiment Date 2014-07-28
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

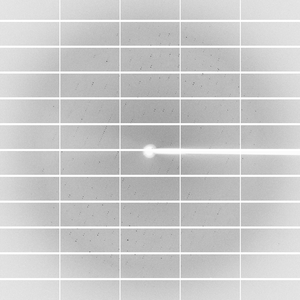

Dataset 201470_2_#####.cbf details

Number of frames 150 (1 - 150)
Distance [mm] 580.0
Oscillation width [°] 0.40
Phi [°] 137.0
Wavelength [Å] 0.97920
Experiment Date 2014-07-28
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
