Diffraction project datasets CKINASE_8em8
- Resolution: 2.54 Å
- Space group: C 2 2 21
PDB website for 8EM8
PDB validation report for 8EM8
doi:10.18430/M38EM8
Project details

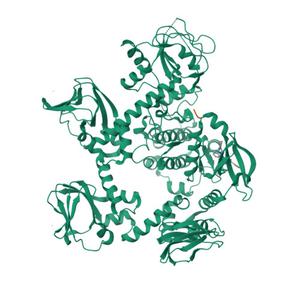

| Title | Co-crystal structure of the cGMP-dependent protein kinase PKG from Plasmodium falciparum in complex with RY-1-165 |
| Authors | Hutchinson, A., Dong, A., Seitova, A., Bhanot, P., Arrowsmith, C.H., Edwards, A.M., Halabelian, L., Structural Genomics Consortium (SGC) |
| R / Rfree | 0.22 / 0.26 |
| Unit cell edges [Å] | 95.15 x 127.99 x 213.73 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

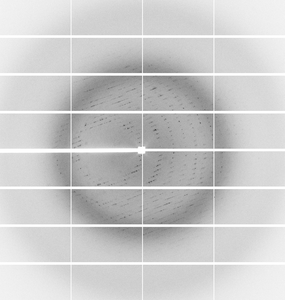

Dataset AV301_1_######.cbf details
| Number of frames | 480 (1 - 480) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Wavelength [Å] | 0.97918 |
| Experiment Date | 2021-04-12 |
| Equipment | 24-ID-E at APS (Advanced Photon Source) |
