Diffraction project datasets ElanA_01412_a_B1_6uzi
- Resolution: 2.8 Å
- Space group: P 21 21 21
PDB website for 6UZI
PDB validation report for 6UZI
doi:10.18430/m36uzi
Project details

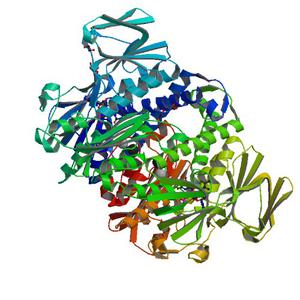

| Title | Crystal structure of Dihydrolipoyl dehydrogenase from Elizabethkingia anophelis NUHP1 |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.17 / 0.23 |
| Unit cell edges [Å] | 74.06 x 106.80 x 255.70 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

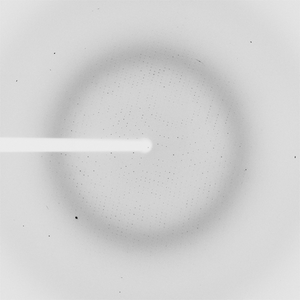

Dataset ceb1-4.### details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 320.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 150.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2017-12-07 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
