Diffraction project datasets FB10611C_3e4v
- Method: SAD
- Resolution: 1.4 Å
- Space group: P 21 21 21
PDB website for 3E4V
PDB validation report for 3E4V
doi:10.18430/M33E4V
Project details
| Title | Crystal structure of NADH:FMN oxidoreductase like protein in complex with FMN (YP_544701.1) from METHYLOBACILLUS FLAGELLATUS KT at 1.40 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.12 / 0.15 |
| Unit cell edges [Å] | 50.01 x 64.84 x 100.17 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

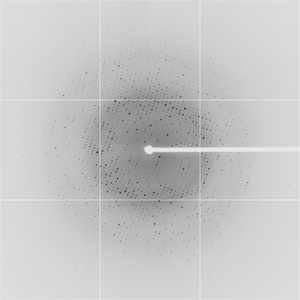

Dataset 89326_1_###.img details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 139.0 |
| Wavelength [Å] | 0.97836 |
| Equipment | BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory) |
