Diffraction project datasets FK9593A_3bbj

  • Method: MAD
  • Resolution: 2.16 Å
  • Space group: P 21 21 2
Download all images (3.0 GB)

PDB website for 3BBJ
PDB validation report for 3BBJ

doi:10.18430/M33BBJ

Project details

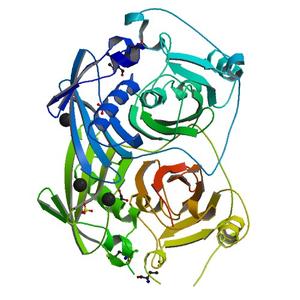

Title CRYSTAL STRUCTURE OF A PUTATIVE THIOESTERASE II (TFU_2367) FROM THERMOBIFIDA FUSCA YX AT 2.45 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.24
Unit cell edges [Å] 99.82 x 103.65 x 54.73
Unit cell angles [°] 90.0, 90.0, 90.0

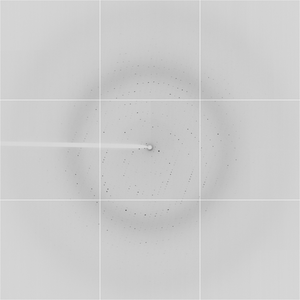

Dataset 60655_1_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 192.0
Wavelength [Å] 0.97960
Experiment Date 2007-09-15
Equipment 8.2.1 at ALS (Advanced Light Source)

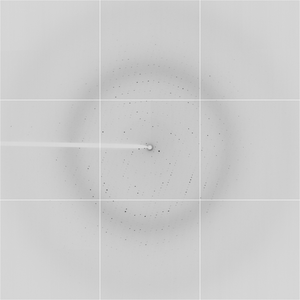

Dataset 60655_1_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 192.0
Wavelength [Å] 1.00000
Experiment Date 2007-09-15
Equipment 8.2.1 at ALS (Advanced Light Source)

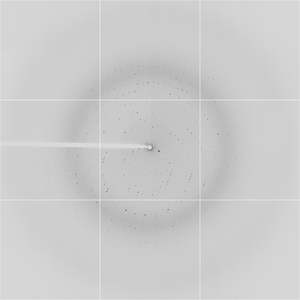

Dataset 60655_2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 192.0
Wavelength [Å] 0.97940
Experiment Date 2007-09-15
Equipment 8.2.1 at ALS (Advanced Light Source)
