Diffraction project datasets FM11503A_3b5o
Project details
| Title |

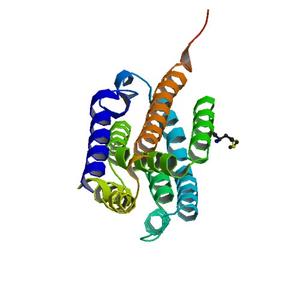

CRYSTAL STRUCTURE OF A CADD-LIKE PROTEIN OF UNKNOWN FUNCTION (NPUN_F6505) FROM NOSTOC PUNCTIFORME PCC 73102 AT 1.35 A RESOLUTION |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.16 / 0.17 |
| Unit cell edges [Å] |
91.15 x
91.15 x
67.10
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

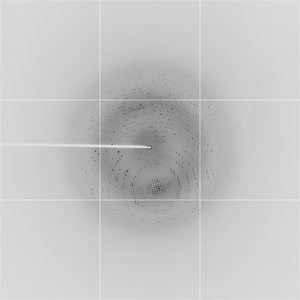

Dataset 60579_1_E1_###.img details
| Number of frames |
240 (1 - 240) |
| Distance [mm] |
160.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
-27.0 |
| Wavelength [Å] |
0.97970 |
| Experiment Date |
2007-09-14 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

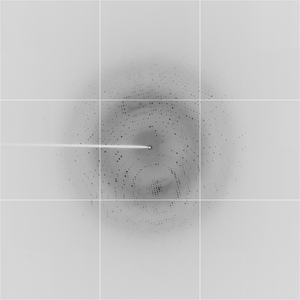

Dataset 60579_1_E2_###.img details
| Number of frames |
240 (1 - 240) |
| Distance [mm] |
160.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
-27.0 |
| Wavelength [Å] |
1.00000 |
| Experiment Date |
2007-09-14 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

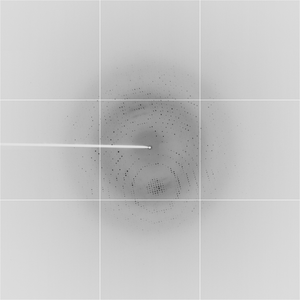

Dataset 60579_2_###.img details
| Number of frames |
240 (1 - 240) |
| Distance [mm] |
160.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
-27.0 |
| Wavelength [Å] |
0.97950 |
| Experiment Date |
2007-09-14 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

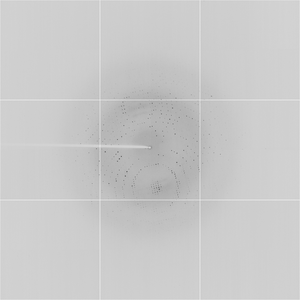

Dataset 60579_lowres_3_###.img details
| Number of frames |
240 (1 - 240) |
| Distance [mm] |
160.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
-27.0 |
| Wavelength [Å] |
1.00000 |
| Experiment Date |
2007-09-14 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|
