Diffraction project datasets FM12041A_2rij

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: H 3 2
Download all images (5.0 GB)

PDB website for 2RIJ
PDB validation report for 2RIJ

doi:10.18430/M32RIJ

Project details

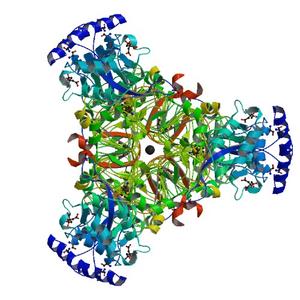

Title Crystal structure of a putative 2,3,4,5-tetrahydropyridine-2-carboxylate n-succinyltransferase (cj1605c, dapd) from campylobacter jejuni at 1.90 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 135.09 x 135.09 x 213.74
Unit cell angles [°] 90.0, 90.0, 120.0

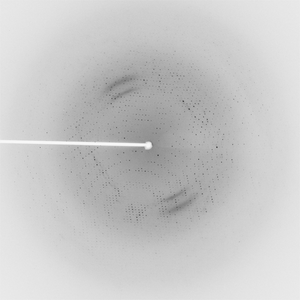

Dataset 58652_1_E1.#### details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 164.0
Wavelength [Å] 0.97957
Experiment Date 2007-08-19
Equipment 23-ID-D at APS (Advanced Photon Source)

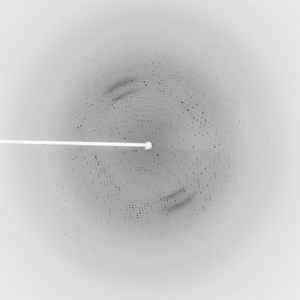

Dataset 58652_1_E2.#### details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 164.0
Wavelength [Å] 0.95373
Experiment Date 2007-08-19
Equipment 23-ID-D at APS (Advanced Photon Source)

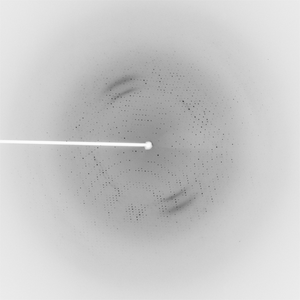

Dataset 58652_2.#### details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 164.0
Wavelength [Å] 0.97942
Experiment Date 2007-08-19
Equipment 23-ID-D at APS (Advanced Photon Source)
