Diffraction project datasets GS13437A_3iee
- Method: SAD
- Resolution: 1.7 Å
- Space group: P 21 21 21
PDB website for 3IEE
PDB validation report for 3IEE
doi:10.18430/M33IEE
Project details

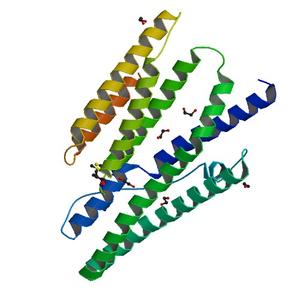

| Title | Crystal structure of an alpha helical protein (BF3319) from Bacteroides fragilis NCTC 9343 at 1.70 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.16 / 0.19 |
| Unit cell edges [Å] | 48.53 x 58.53 x 94.12 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

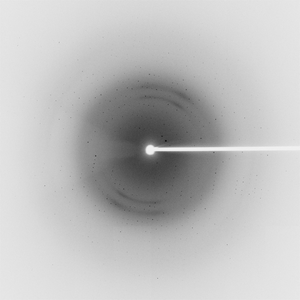

Dataset 120680_1_###.mccd details
| Number of frames | 160 (1 - 160) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.75 |
| Phi [°] | 22.0 |
| Wavelength [Å] | 0.97918 |
| Experiment Date | 2009-05-13 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
