Diffraction project datasets HP9625C_2qyv
Project details
Title |

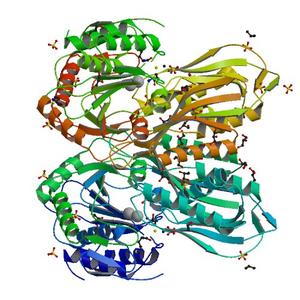

Crystal structure of putative Xaa-His dipeptidase (YP_718209.1) from Haemophilus somnus 129PT at 2.11 A resolution |
Authors |
Joint Center for Structural Genomics (JCSG) |
Bioentity |
None |
R / Rfree |
0.22 / 0.24 |
Unit cell edges [Å] |
173.92 x
84.29 x
123.20
|
Unit cell angles [°] |
90.0,
90.0,
90.0
|

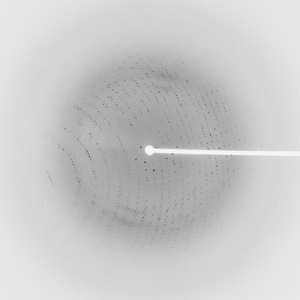

Dataset 52009_1_E1_###.mccd details
Number of frames |
90 (1 - 90) |
Distance [mm] |
300.0 |
Oscillation width [°] |
1.00 |
Phi [°] |
66.0 |
Wavelength [Å] |
0.97920 |
Experiment Date |
2007-06-03 |
Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

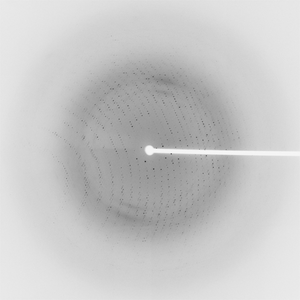

Dataset 52009_1_E2_###.mccd details
Number of frames |
90 (1 - 90) |
Distance [mm] |
300.0 |
Oscillation width [°] |
1.00 |
Phi [°] |
66.0 |
Wavelength [Å] |
0.91837 |
Experiment Date |
2007-06-03 |
Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

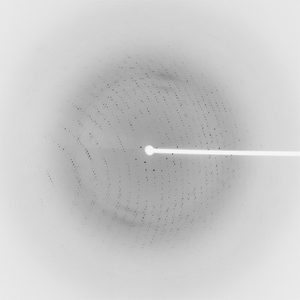

Dataset 52009_2_###.mccd details
Number of frames |
90 (1 - 90) |
Distance [mm] |
300.0 |
Oscillation width [°] |
1.00 |
Phi [°] |
66.0 |
Wavelength [Å] |
0.97908 |
Experiment Date |
2007-06-03 |
Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
