Diffraction project datasets IDP00794_5TRO
- Resolution: 1.8 Å
- Space group: C 1 2 1
Uniprot website for A0A0H2WVW5
PDB website for 5TRO
PDB validation report for 5TRO
doi:10.18430/m35tro
Project details

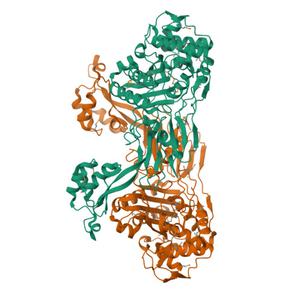

| Title | 1.8 Angstrom Resolution Crystal Structure of Dimerization and Transpeptidase domains (residues 39-608) of Penicillin-Binding Protein 1 from Staphylococcus aureus. |
| Authors | Minasov, G., Shuvalova, L., Kiryukhina, O., Dubrovska, I., Grimshaw, S., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.21 |
| Unit cell edges [Å] | 178.84 x 72.20 x 86.36 |
| Unit cell angles [°] | 90.0, 103.2, 90.0 |

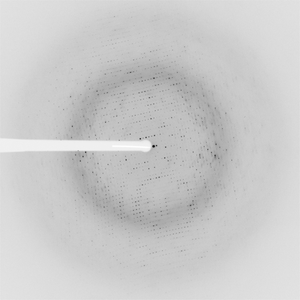

Dataset idp00794-5sm-cut-a_1_2_10.### details
| Number of frames | 600 (1 - 600) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 90.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-10-20 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |

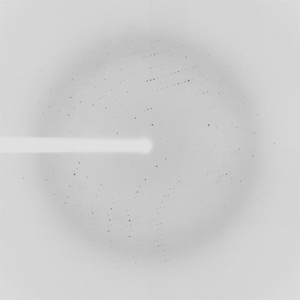

Dataset idp95627cut-e1_1_1_6.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 210.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-08-23 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
