Diffraction project datasets IDP01171_4nv4

  • Method: Molecular Replacement
  • Resolution: 1.8 Å
  • Space group: P 63 2 2
Download all images (1.4 GB)

PDB website for 4NV4
PDB validation report for 4NV4

doi:10.18430/m34nv4

Project details

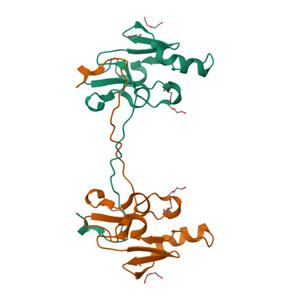

Title 1.8 Angstrom Crystal Structure of Signal Peptidase I from Bacillus anthracis.
Authors Minasov, G., Shuvalova, L., Dubrovska, I., Winsor, J., Shatsman, S., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 80.23 x 80.23 x 174.25
Unit cell angles [°] 90.0, 90.0, 120.0

Dataset idp01171.4a.### details

Number of frames 300 (1 - 300)
Distance [mm] 180.0
Oscillation width [°] 0.60
Phi [°] 80.0
Wavelength [Å] 0.97872
Experiment Date 2013-11-26
Equipment 21-ID-F at APS (Advanced Photon Source)
