Diffraction project datasets IDP02414_5hvn
- Resolution: 3.0 Å
- Space group: P 63 2 2
PDB website for 5HVN
PDB validation report for 5HVN
doi:10.18430/m35hvn
Project details

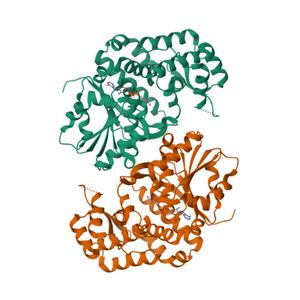

| Title | 3.0 Angstrom Crystal Structure of 3-dehydroquinate Synthase (AroB) from Francisella tularensis in Complex with NAD. |
| Authors | Minasov, G., Light, S.H., Shuvalova, L., Dubrovska, I., Winsor, J., Zhou, M., Grimshaw, S., Kwon, K., Joachimiak, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.19 |
| Unit cell edges [Å] | 178.98 x 178.98 x 96.22 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |
Dataset idp95078sm-a.### details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 150.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2014-12-11 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
