Diffraction project datasets IDP06526_5E31
- Resolution: 2.3 Å
- Space group: P 21 21 21
Uniprot website for Q3XZN6
PDB website for 5E31
PDB validation report for 5E31
doi:10.18430/m35e31
Project details
| Title | 2.3 Angstrom Crystal Structure of the Monomeric Form of Penicillin Binding Protein 2 Prime from Enterococcus faecium. |
| Authors | Minasov, G., Wawrzak, Z., Shuvalova, L., Dubrovska, I., Flores, K., Filippova, E., Grimshaw, S., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 61.44 x 64.34 x 182.79 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

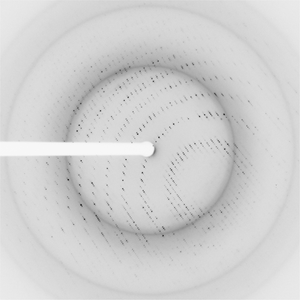

Dataset idp06526sm-cut-a_1_3_2.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 230.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 195.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2015-08-24 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
