Diffraction project datasets IDP07201_6AOO
- Resolution: 2.15 Å
- Space group: C 1 2 1
Uniprot website for P44427
PDB website for 6AOO
PDB validation report for 6AOO
doi:10.18430/m36aoo
Project details

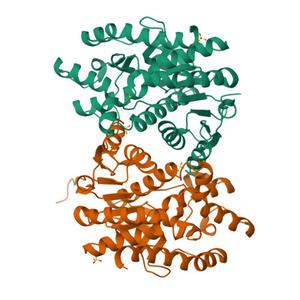

| Title | 2.15 Angstrom Resolution Crystal Structure of Malate Dehydrogenase from Haemophilus influenzae |
| Authors | Minasov, G., Wawrzak, Z., Skarina, T., Grimshaw, S., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.24 |
| Unit cell edges [Å] | 107.69 x 94.12 x 73.22 |
| Unit cell angles [°] | 90.0, 121.7, 90.0 |

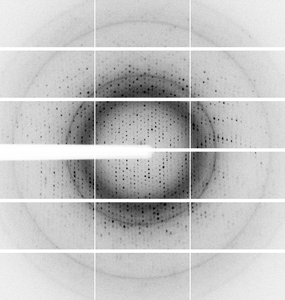

Dataset IDP07201-6_######.cbf details
| Number of frames | 1440 (1 - 1440) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.25 |
| Omega [°] | 1.0 |
| Wavelength [Å] | 1.07822 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |

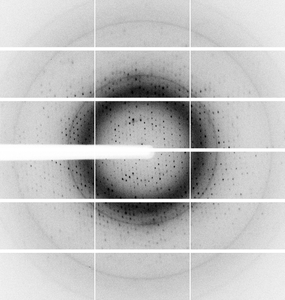

Dataset IDP07201-6b_######.cbf details
| Number of frames | 1440 (1 - 1440) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.25 |
| Omega [°] | 30.0 |
| Wavelength [Å] | 1.07822 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
