Diffraction project datasets IDP91016_5TW9
- Resolution: 1.5 Å
- Space group: P 21 21 21
Uniprot website for Q0WFT9
PDB website for 5TW9
PDB validation report for 5TW9
doi:10.18430/m35tw9
Project details

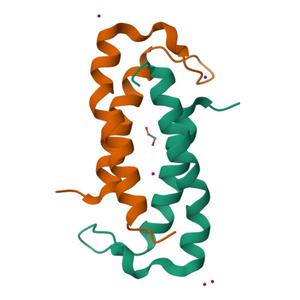

| Title | 1.50 Angstrom Crystal Structure of C-terminal Fragment (residues 322-384) of Iron Uptake System Component EfeO from Yersinia pestis. |
| Authors | Minasov, G., Shuvalova, L., Flores, K., Dubrovska, I., Grimshaw, S., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 34.04 x 64.00 x 173.15 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

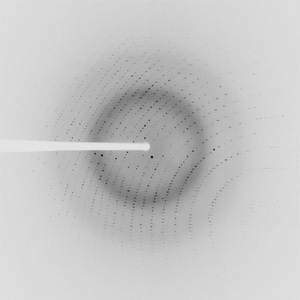

Dataset idp91016-3-cut-a_2_3_1.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 50.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-07-28 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
