Diffraction project datasets IDP91202_3U80
- Resolution: 1.6 Å
- Space group: P 21 21 21
Uniprot website for D6ZTY6
PDB website for 3U80
PDB validation report for 3U80
doi:10.18430/m33u80
Project details

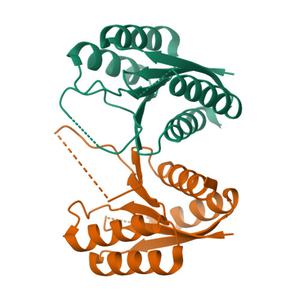

| Title | 1.60 Angstrom Resolution Crystal Structure of a 3-Dehydroquinate Dehydratase-like Protein from Bifidobacterium longum |
| Authors | Light, S.H., Minasov, G., Shuvalova, L., Papazisi, L., Lavie, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.20 |
| Unit cell edges [Å] | 44.00 x 72.68 x 81.71 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

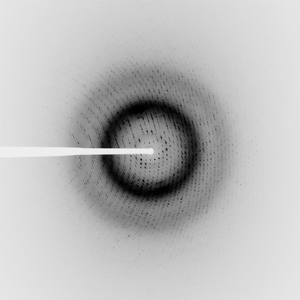

Dataset idp02095o.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 150.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 62.0 |
| Wavelength [Å] | 0.99189 |
| Experiment Date | 2011-11-02 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |

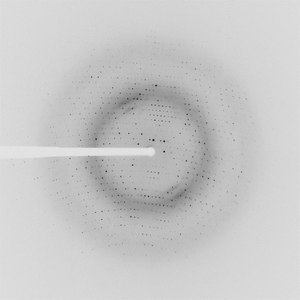

Dataset idp91202a.### details
| Number of frames | 205 (1 - 205) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 309.6 |
| Wavelength [Å] | 0.97903 |
| Experiment Date | 2011-10-06 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
Dataset idp91202a.### details
| Number of frames | 94 (207 - 300) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 309.6 |
| Wavelength [Å] | 0.97903 |
| Experiment Date | 2011-10-06 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
