Diffraction project datasets IDP91778_4mus
- Method: Molecular Replacement
- Resolution: 1.675 Å
- Space group: P 1
PDB website for 4MUS
PDB validation report for 4MUS
doi:10.18430/m34mus
Project details

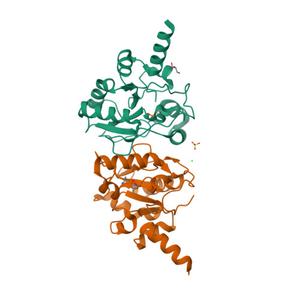

| Title | Crystal structure of vancomycin resistance D,D-dipeptidase/D,D-pentapeptidase VanXYc D59S mutant in complex with D-Ala-D-Ala phosphinate analog |
| Authors | Stogios, P.J., Evdokimova, E., Meziane-Cherif, D., Di Leo, R., Yim, V., Courvalin, P., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 44.26 x 44.78 x 62.41 |
| Unit cell angles [°] | 86.8, 77.3, 64.2 |
Dataset IDP91778-11.### details
| Number of frames | 363 (1 - 363) |
| Distance [mm] | 170.0 |
| Oscillation width [°] | 1.00 |
| Wavelength [Å] | 1.28756 |
| Experiment Date | 2013-07-26 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
Dataset IDP91778-11ano.### details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 100.0 |
| Oscillation width [°] | 1.00 |
| Wavelength [Å] | 1.27689 |
| Experiment Date | 2013-07-27 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
Dataset IDP91778-11anob.### details
| Number of frames | 100 (1 - 100) |
| Distance [mm] | 100.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 160.0 |
| Wavelength [Å] | 1.27689 |
| Experiment Date | 2013-07-27 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
Dataset IDP91778-11b.### details
| Number of frames | 160 (1 - 160) |
| Distance [mm] | 170.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 40.0 |
| Wavelength [Å] | 1.28756 |
| Experiment Date | 2013-07-26 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
