Diffraction project datasets IDP92074_4o0n

  • Method: Molecular Replacement
  • Resolution: 2.4 Å
  • Space group: P 21 21 21
Download all images (1.3 GB)

PDB website for 4O0N
PDB validation report for 4O0N

doi:10.18430/m34o0n

Project details

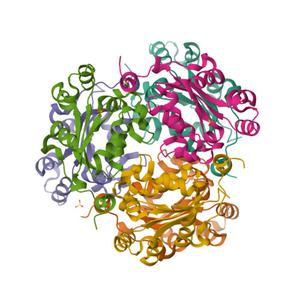

Title 2.4 Angstrom Resolution Crystal Structure of Putative Nucleoside Diphosphate Kinase from Toxoplasma gondii.
Authors Minasov, G., Ruan, J., Ngo, H., Shuvalova, L., Dubrovska, I., Flores, K., Shanmugam, D., Roos, D., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.19 / 0.24
Unit cell edges [Å] 73.39 x 121.59 x 212.27
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset idp92074a.### details

Number of frames 300 (1 - 300)
Distance [mm] 250.0
Oscillation width [°] 0.60
Phi [°] 65.0
Wavelength [Å] 0.97872
Experiment Date 2013-11-06
Equipment 21-ID-F at APS (Advanced Photon Source)
