Diffraction project datasets IDP93871_5U9C
- Resolution: 1.9 Å
- Space group: I 2 2 2
Uniprot website for Q56905
PDB website for 5U9C
PDB validation report for 5U9C
doi:10.18430/m35u9c
Project details
| Title | 1.9 Angstrom Resolution Crystal Structure of dTDP-4-dehydrorhamnose Reductase from Yersinia enterocolitica |
| Authors | Minasov, G., Shuvalova, L., Flores, K., Dubrovska, I., Olphie, A., Grimshaw, S., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.19 |
| Unit cell edges [Å] | 132.45 x 184.87 x 187.02 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

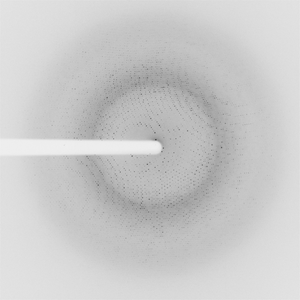

Dataset idp93871sm-c.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 230.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 345.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2014-08-14 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
