Diffraction project datasets IDP95184_5F7R

  • Resolution: 1.85 Å
  • Space group: P 21 21 21
Download all images (1.3 GB)

Uniprot website for Q8YAF1
PDB website for 5F7R
PDB validation report for 5F7R

doi:10.18430/m35f7r

Project details

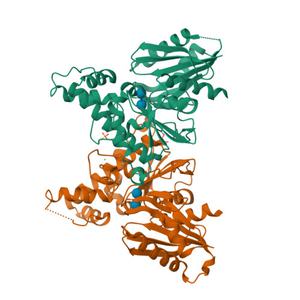

Title ROK repressor Lmo0178 from Listeria monocytogenes bound to inducer
Authors Light, S.H., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 57.20 x 95.06 x 117.14
Unit cell angles [°] 90.0, 90.0, 90.0

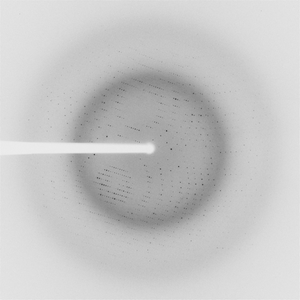

Dataset idp95184r_1_3_5.### details

Number of frames 300 (1 - 300)
Distance [mm] 180.0
Oscillation width [°] 0.60
Phi [°] 95.0
Wavelength [Å] 0.97872
Experiment Date 2015-04-27
Equipment 21-ID-F at APS (Advanced Photon Source)

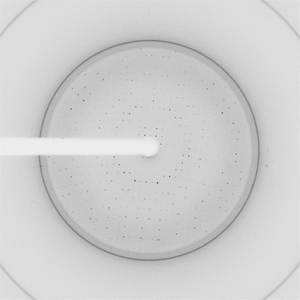

Dataset idp9584o_2_3_6.### details

Number of frames 24 (1 - 24)
Distance [mm] 300.0
Phi [°] -1.0
Wavelength [Å] 0.97872
Experiment Date 2015-04-20
Equipment 21-ID-F at APS (Advanced Photon Source)

Dataset idp9584o_2_3_6.### details

Number of frames 26 (26 - 51)
Distance [mm] 300.0
Phi [°] -1.0
Wavelength [Å] 0.97872
Experiment Date 2015-04-20
Equipment 21-ID-F at APS (Advanced Photon Source)

Dataset idp9584o_2_3_6.### details

Number of frames 75 (53 - 127)
Distance [mm] 300.0
Phi [°] -1.0
Wavelength [Å] 0.97872
Experiment Date 2015-04-20
Equipment 21-ID-F at APS (Advanced Photon Source)

Dataset idp9584o_2_3_6.### details

Number of frames 26 (129 - 154)
Distance [mm] 300.0
Phi [°] -1.0
Wavelength [Å] 0.97872
Experiment Date 2015-04-20
Equipment 21-ID-F at APS (Advanced Photon Source)

Dataset idp9584o_2_3_6.### details

Number of frames 65 (156 - 220)
Distance [mm] 300.0
Phi [°] -1.0
Wavelength [Å] 0.97872
Experiment Date 2015-04-20
Equipment 21-ID-F at APS (Advanced Photon Source)

Dataset idp9584o_2_3_6.### details

Number of frames 34 (222 - 255)
Distance [mm] 300.0
Phi [°] -1.0
Wavelength [Å] 0.97872
Experiment Date 2015-04-20
Equipment 21-ID-F at APS (Advanced Photon Source)

Dataset idp9584o_2_3_6.### details

Number of frames 44 (257 - 300)
Distance [mm] 300.0
Phi [°] -1.0
Wavelength [Å] 0.97872
Experiment Date 2015-04-20
Equipment 21-ID-F at APS (Advanced Photon Source)
