Diffraction project datasets MG14656B_3g68
Project details
| Title |
CRYSTAL STRUCTURE OF A PUTATIVE PHOSPHOSUGAR ISOMERASE (CD3275) FROM CLOSTRIDIUM DIFFICILE 630 AT 1.80 A RESOLUTION |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.16 / 0.19 |
| Unit cell edges [Å] |
130.52 x
55.91 x
103.03
|
| Unit cell angles [°] |
90.0,
114.2,
90.0
|

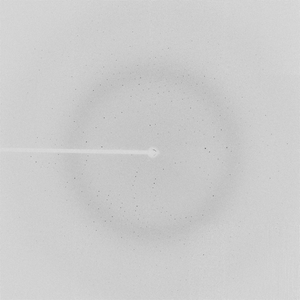

Dataset 93729_1_E1.#### details
| Number of frames |
92 (1 - 92) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
162.0 |
| Wavelength [Å] |
0.97967 |
| Experiment Date |
2008-10-12 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|
Dataset 93729_1_E2.#### details
| Number of frames |
92 (1 - 92) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
162.0 |
| Wavelength [Å] |
0.94645 |
| Experiment Date |
2008-10-12 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

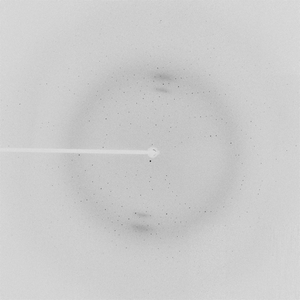

Dataset 93729_2_E1.#### details
| Number of frames |
92 (1 - 92) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
207.0 |
| Wavelength [Å] |
0.97967 |
| Experiment Date |
2008-10-12 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

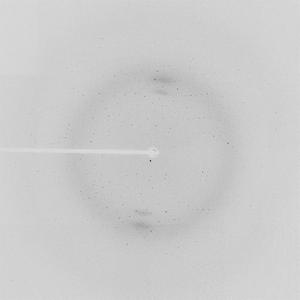

Dataset 93729_2_E2.#### details
| Number of frames |
92 (1 - 92) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
207.0 |
| Wavelength [Å] |
0.94645 |
| Experiment Date |
2008-10-12 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

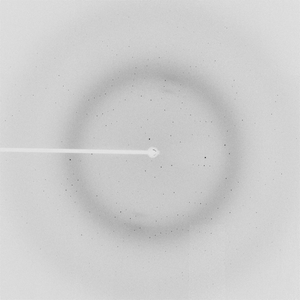

Dataset 93729_3_E1.#### details
| Number of frames |
92 (1 - 92) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
252.0 |
| Wavelength [Å] |
0.97967 |
| Experiment Date |
2008-10-12 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

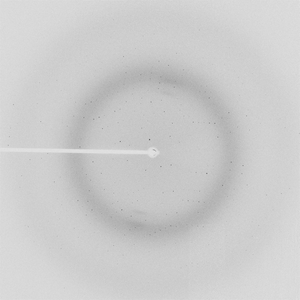

Dataset 93729_3_E2.#### details
| Number of frames |
92 (1 - 92) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
252.0 |
| Wavelength [Å] |
0.94645 |
| Experiment Date |
2008-10-12 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

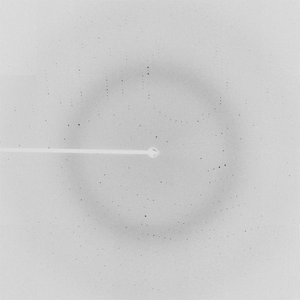

Dataset 93729_4_E1.#### details
| Number of frames |
92 (1 - 92) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
297.0 |
| Wavelength [Å] |
0.97967 |
| Experiment Date |
2008-10-12 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

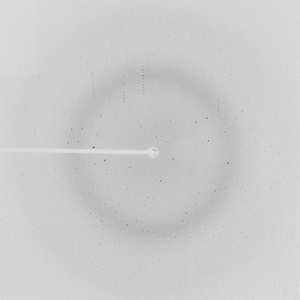

Dataset 93729_4_E2.#### details
| Number of frames |
92 (1 - 92) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
297.0 |
| Wavelength [Å] |
0.94645 |
| Experiment Date |
2008-10-12 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|
