Diffraction project datasets MykaA_01062_a_B1-NADP-P218_7k62
- Resolution: 2.05 Å
- Space group: P 21 21 21
PDB website for 7K62
PDB validation report for 7K62
doi:10.18430/m37k62
Project details

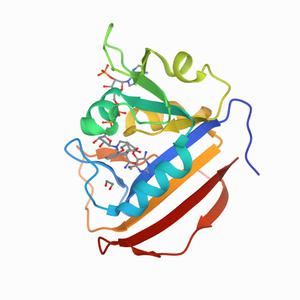

| Title | Crystal Structure of Dihydrofolate reductase from Mycobacterium kansasii in complex with NADP and inhibitor P218 |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.21 / 0.27 |
| Unit cell edges [Å] | 62.10 x 66.25 x 86.12 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

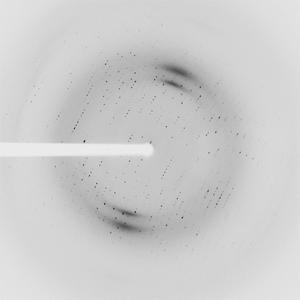

Dataset kdu7-7.### details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -90.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2020-08-06 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
