Diffraction project datasets PC06304B_2o4t

  • Method: Molecular Replacement
  • Resolution: 1.95 Å
  • Space group: H 3 2
Download all images (3.7 GB)

PDB website for 2O4T
PDB validation report for 2O4T

doi:10.18430/M32O4T

Project details

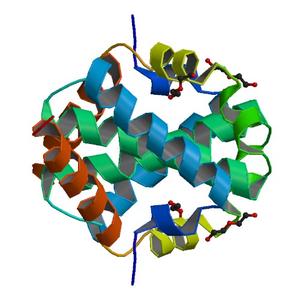

Title CRYSTAL STRUCTURE OF a protein of the DUF1048 family with a left-handed superhelix fold (BH3976) FROM BACILLUS HALODURANS AT 1.95 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.26
Unit cell edges [Å] 85.58 x 85.58 x 104.57
Unit cell angles [°] 90.0, 90.0, 120.0

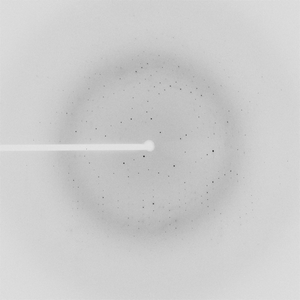

Dataset 34691_1_E1.#### details

Number of frames 90 (1 - 90)
Distance [mm] 290.0
Oscillation width [°] 1.00
Phi [°] 128.0
Wavelength [Å] 0.97942
Experiment Date 2006-10-19
Equipment 23-ID-D at APS (Advanced Photon Source)

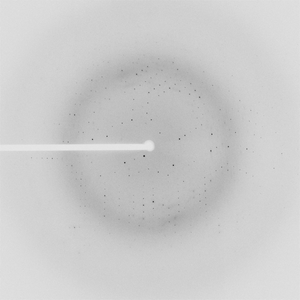

Dataset 34691_1_E2.#### details

Number of frames 90 (1 - 90)
Distance [mm] 290.0
Oscillation width [°] 1.00
Phi [°] 128.0
Wavelength [Å] 0.94645
Experiment Date 2006-10-19
Equipment 23-ID-D at APS (Advanced Photon Source)

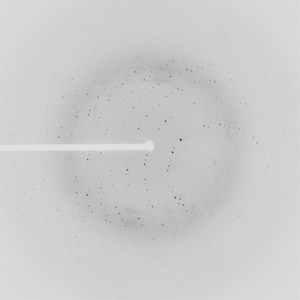

Dataset 34691_2.#### details

Number of frames 218 (1 - 218)
Distance [mm] 290.0
Oscillation width [°] 1.00
Wavelength [Å] 0.97921
Experiment Date 2006-10-19
Equipment 23-ID-D at APS (Advanced Photon Source)
