Diffraction project datasets PlfaA_01252_a_A13-TCMDC123995_8u2o
- Resolution: 2.15 Å
- Space group: P 1 21 1
Uniprot website for Q8IDW1
PDB website for 8U2O
PDB validation report for 8U2O
doi:10.18430/m38u2o
Project details

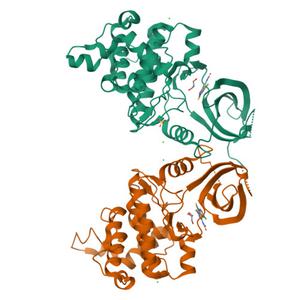

| Title | Crystal Structure of Cdk-related protein kinase 6 (PK6) from Plasmodium falciparum in complex with inhibitor TCMDC-123995 |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.22 / 0.28 |
| Unit cell edges [Å] | 65.98 x 46.49 x 111.28 |
| Unit cell angles [°] | 90.0, 100.1, 90.0 |

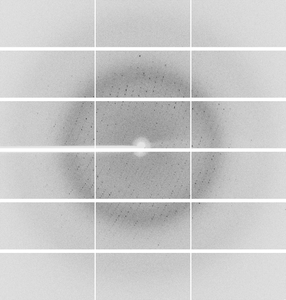

Dataset PSL-1008_7268_master.h5@##### details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 0.97949 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
