Diffraction project datasets RF2003A_3u21
- Method: MAD
- Resolution: 2.18 Å
- Space group: P 43 21 2
PDB website for 3U21
PDB validation report for 3U21
doi:10.18430/M33U21
Project details

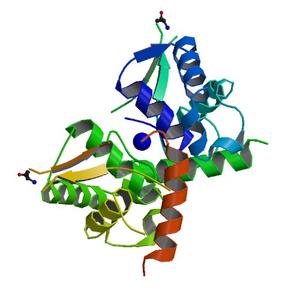

| Title | Crystal structure of a Fragment of Nuclear factor related to kappa-B-binding protein (residues 370-495) (NFRKB) from Homo sapiens at 2.18 A resolution |
| Authors | Kumar, A., Mocklinghoff, S., Yumoto, F., Jaroszewski, L., Farr, C.L., Grzechnik, A., Nguyen, P., Weichenberger, C.X., Chiu, H.J., Klock, H.E., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Conklin, B.R., Fletterick, R.J., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.23 / 0.27 |
| Unit cell edges [Å] | 60.94 x 60.94 x 130.84 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

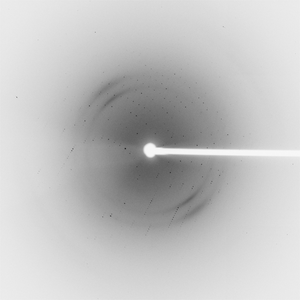

Dataset 168220_1_E1_####.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 0.97936 |
| Experiment Date | 2011-06-22 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

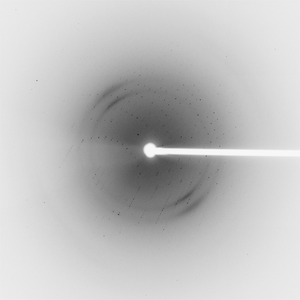

Dataset 168220_1_E2_####.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2011-06-22 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
Dataset 168220_2_####.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 0.97915 |
| Experiment Date | 2011-06-22 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
