Diffraction project datasets TM0581_2q78

Project details

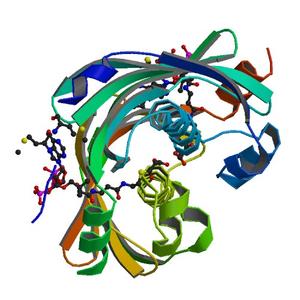

Title Crystal structure of a thioesterase-like protein (tm0581) from thermotoga maritima msb8 at 2.20 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 60.35 x 90.71 x 230.42
Unit cell angles [°] 90.0, 90.0, 90.0

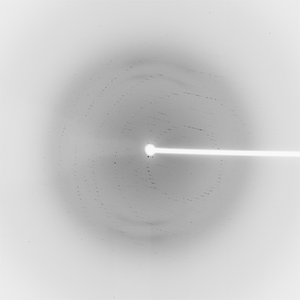

Dataset 50086_1_###.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 139.0
Wavelength [Å] 0.97913
Experiment Date 2007-03-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
