Diffraction project datasets TM0936_1j6p

Project details

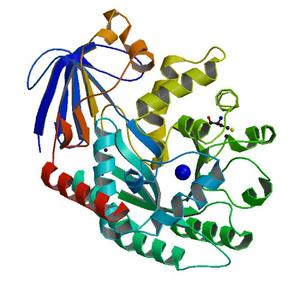

Title Crystal structure of Metal-dependent hydrolase of cytosinedemaniase/chlorohydrolase family (TM0936) from Thermotoga maritima at 1.9 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.20
Unit cell edges [Å] 113.78 x 113.78 x 81.31
Unit cell angles [°] 90.0, 90.0, 120.0

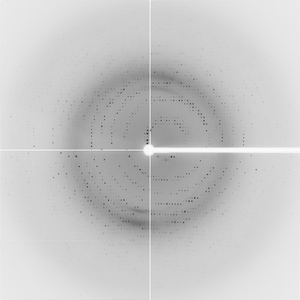

Dataset 17c2p3_1_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 170.0
Oscillation width [°] 1.00
Phi [°] 291.0004
Wavelength [Å] 0.97922
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

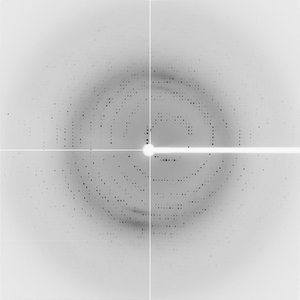

Dataset 17c2p3_2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 184.0
Oscillation width [°] 1.00
Phi [°] 291.0004
Wavelength [Å] 0.91837
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 17c2p3_3_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 170.0
Oscillation width [°] 1.00
Phi [°] 291.0004
Wavelength [Å] 0.97893
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

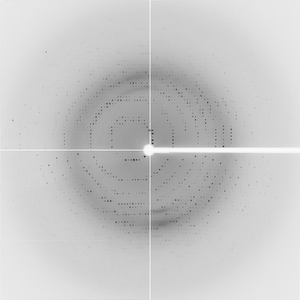

Dataset 17c2p3_4_###.img details

Number of frames 52 (1 - 52)
Distance [mm] 170.0
Oscillation width [°] 1.00
Phi [°] 111.0
Wavelength [Å] 0.97922
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
