Diffraction project datasets TM1385_2q8n

  • Method: Molecular Replacement
  • Resolution: 1.82 Å
  • Space group: I 21 21 21
Download all images (7.3 GB)

PDB website for 2Q8N
PDB validation report for 2Q8N

doi:10.18430/M32Q8N

Project details

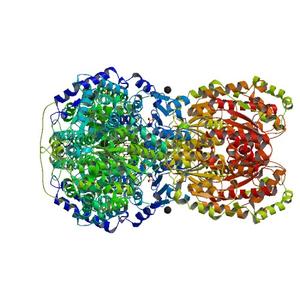

Title Crystal structure of Glucose-6-phosphate isomerase (EC 5.3.1.9) (TM1385) from Thermotoga maritima at 1.82 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.24
Unit cell edges [Å] 117.51 x 125.87 x 245.48
Unit cell angles [°] 90.0, 90.0, 90.0

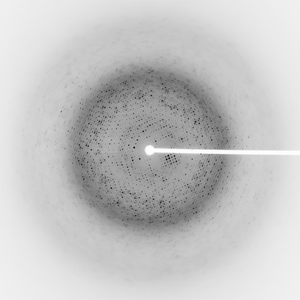

Dataset B8_1_###.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 260.0
Oscillation width [°] 0.50
Phi [°] 143.0
Wavelength [Å] 1.00000
Experiment Date 2005-07-31
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

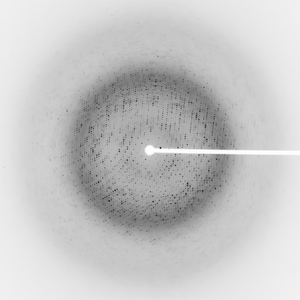

Dataset B8_2_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 260.0
Oscillation width [°] 0.50
Phi [°] 243.0
Wavelength [Å] 1.00000
Experiment Date 2005-07-31
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

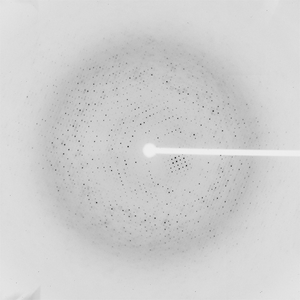

Dataset B8_3_###.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 360.0
Oscillation width [°] 0.50
Phi [°] 143.0
Wavelength [Å] 1.00000
Experiment Date 2005-07-31
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
