Diffraction project datasets 10174367_2h56
Project details
| Title |

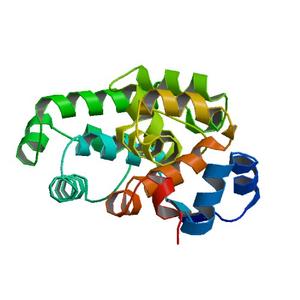

Crystal structure of DNA-3-methyladenine glycosidase (10174367) from Bacillus halodurans at 2.55 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.20 / 0.25 |
| Unit cell edges [Å] |
141.75 x
141.75 x
85.95
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

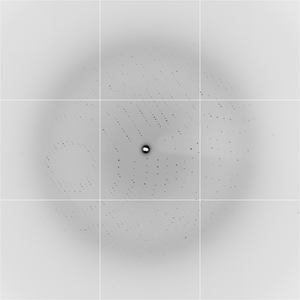

Dataset 18095_1_E1_###.img details
| Number of frames |
30 (1 - 30) |
| Distance [mm] |
370.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
-84.0 |
| Wavelength [Å] |
0.97980 |
| Experiment Date |
2005-09-10 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

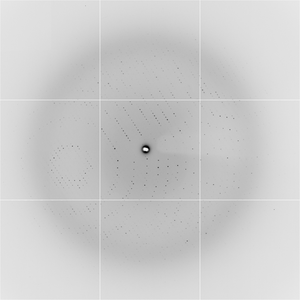

Dataset 18095_1_E2_###.img details
| Number of frames |
30 (1 - 30) |
| Distance [mm] |
370.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
-84.0 |
| Wavelength [Å] |
1.01630 |
| Experiment Date |
2005-09-10 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

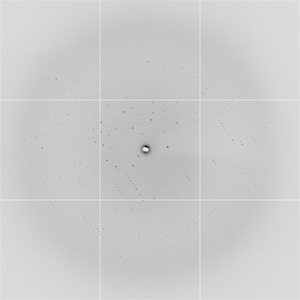

Dataset 18095_2_###.img details
| Number of frames |
70 (1 - 70) |
| Distance [mm] |
420.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
-94.5 |
| Wavelength [Å] |
1.01630 |
| Experiment Date |
2005-09-10 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

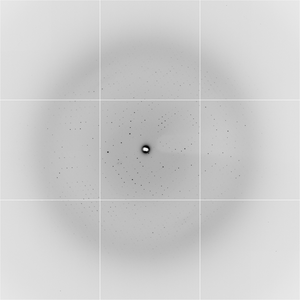

Dataset 18095_3_E1_###.img details
| Number of frames |
30 (1 - 30) |
| Distance [mm] |
370.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
-54.0 |
| Wavelength [Å] |
0.97980 |
| Experiment Date |
2005-09-10 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

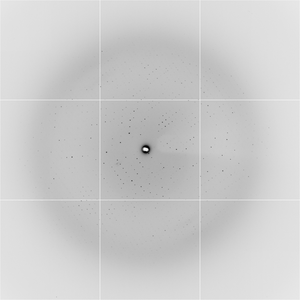

Dataset 18095_3_E2_###.img details
| Number of frames |
30 (1 - 30) |
| Distance [mm] |
370.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
-54.0 |
| Wavelength [Å] |
1.01630 |
| Experiment Date |
2005-09-10 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|
