Diffraction project datasets 10175341_2oa2
Project details
| Title |

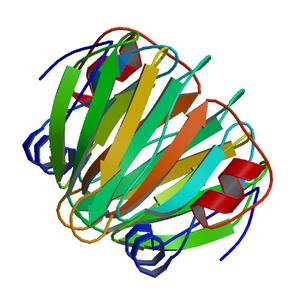

Crystal structure of BH2720 (10175341) from Bacillus halodurans at 1.41 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.17 / 0.19 |
| Unit cell edges [Å] |
68.61 x
68.61 x
60.11
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

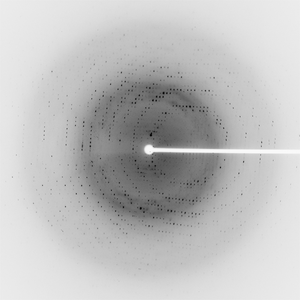

Dataset 35388_1_E1_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
204.0 |
| Wavelength [Å] |
0.97971 |
| Experiment Date |
2006-11-19 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

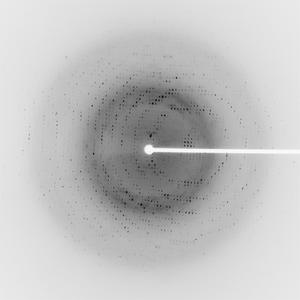

Dataset 35388_1_E2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
204.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2006-11-19 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

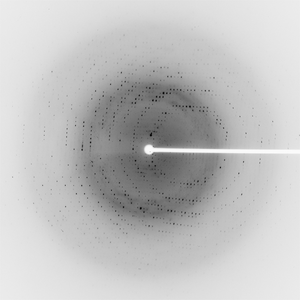

Dataset 35388_2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
204.0 |
| Wavelength [Å] |
0.97925 |
| Experiment Date |
2006-11-19 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

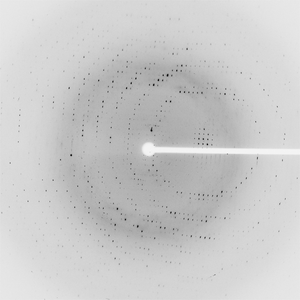

Dataset 35388_3_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
204.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2006-11-19 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
