Diffraction project datasets 10640157_3bf5

  • Method: MAD
  • Resolution: 1.91 Å
  • Space group: P 21 21 21
Download all images (10.7 GB)

PDB website for 3BF5
PDB validation report for 3BF5

doi:10.18430/M33BF5

Project details

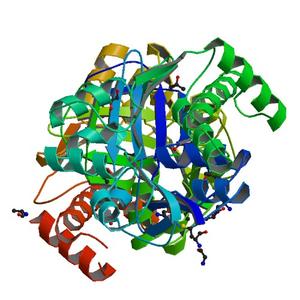

Title Crystal structure of putative ribokinase (10640157) from Thermoplasma acidophilum at 1.91 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.25
Unit cell edges [Å] 56.45 x 59.18 x 177.65
Unit cell angles [°] 90.0, 90.0, 90.0

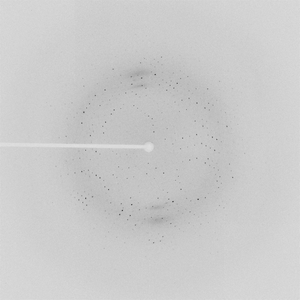

Dataset 65158_1_E1.#### details

Number of frames 360 (1 - 360)
Distance [mm] 270.0
Oscillation width [°] 0.25
Phi [°] 271.0
Wavelength [Å] 0.97953
Experiment Date 2007-10-26
Equipment 23-ID-D at APS (Advanced Photon Source)

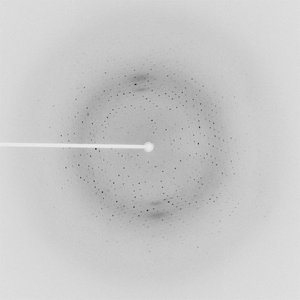

Dataset 65158_1_E2.#### details

Number of frames 360 (1 - 360)
Distance [mm] 270.0
Oscillation width [°] 0.25
Phi [°] 271.0
Wavelength [Å] 0.91840
Experiment Date 2007-10-26
Equipment 23-ID-D at APS (Advanced Photon Source)

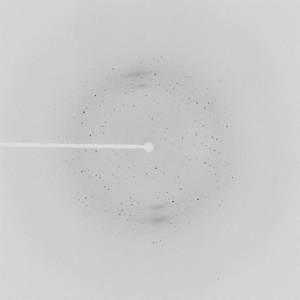

Dataset 65158_2.#### details

Number of frames 360 (1 - 360)
Distance [mm] 270.0
Oscillation width [°] 0.25
Phi [°] 271.0
Wavelength [Å] 0.97939
Experiment Date 2007-10-26
Equipment 23-ID-D at APS (Advanced Photon Source)
