Diffraction project datasets 10640715_2fur

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: P 21 21 21
Download all images (1.9 GB)

PDB website for 2FUR
PDB validation report for 2FUR

doi:10.18430/M32FUR

Project details

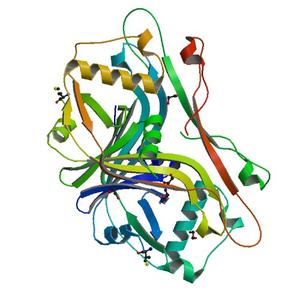

Title CRYSTAL STRUCTURE OF A PUTATIVE FMN-BINDING PROTEIN (TA1372) FROM THERMOPLASMA ACIDOPHILUM AT 1.80 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.23
Unit cell edges [Å] 61.04 x 66.69 x 99.94
Unit cell angles [°] 90.0, 90.0, 90.0

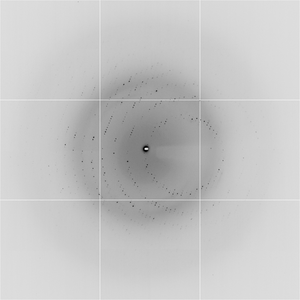

Dataset 21036_1_E1_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 60.0
Wavelength [Å] 0.97970
Experiment Date 2005-12-15
Equipment 8.2.2 at ALS (Advanced Light Source)

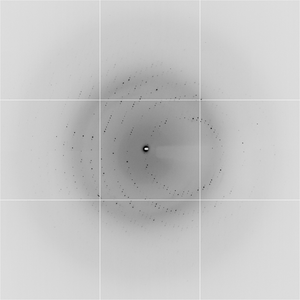

Dataset 21036_1_E2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 60.0
Wavelength [Å] 1.00000
Experiment Date 2005-12-15
Equipment 8.2.2 at ALS (Advanced Light Source)

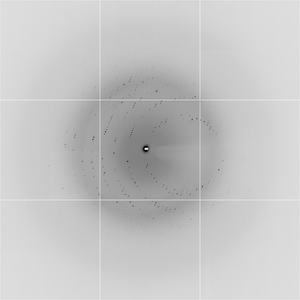

Dataset 21036_2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 60.0
Wavelength [Å] 0.97960
Experiment Date 2005-12-15
Equipment 8.2.2 at ALS (Advanced Light Source)
