Diffraction project datasets 24377463_1zbt

  • Method: MAD
  • Resolution: 2.34 Å
  • Space group: P 43 21 2
Download all images (718.3 MB)

PDB website for 1ZBT
PDB validation report for 1ZBT

doi:10.18430/M31ZBT

Project details

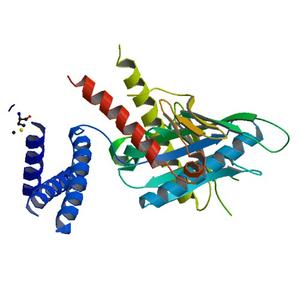

Title Crystal structure of Peptide chain release factor 1 (RF-1) (SMU.1085) from Streptococcus mutans at 2.34 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.22 / 0.28
Unit cell edges [Å] 69.44 x 69.44 x 188.16
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 13517_3_E1_###.img details

Number of frames 45 (1 - 45)
Distance [mm] 225.0
Oscillation width [°] 1.00
Phi [°] 282.0
Wavelength [Å] 0.97960
Experiment Date 2005-01-21
Equipment 8.2.1 at ALS (Advanced Light Source)

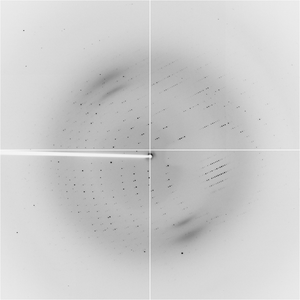

Dataset 13517_3_E2_###.img details

Number of frames 45 (1 - 45)
Distance [mm] 225.0
Oscillation width [°] 1.00
Phi [°] 282.0
Wavelength [Å] 0.99188
Experiment Date 2005-01-21
Equipment 8.2.1 at ALS (Advanced Light Source)

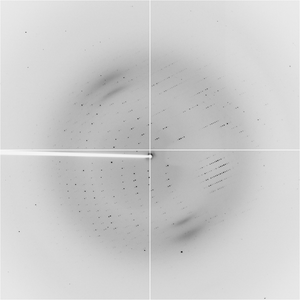

Dataset 13517_3_E3_###.img details

Number of frames 45 (1 - 45)
Distance [mm] 225.0
Oscillation width [°] 1.00
Phi [°] 282.0
Wavelength [Å] 0.97942
Experiment Date 2005-01-21
Equipment 8.2.1 at ALS (Advanced Light Source)
