Diffraction project datasets 2o20
- Resolution: 1.9 Å
- Space group: P 1 21 1
PDB website for 2O20
PDB validation report for 2O20
doi:10.18430/m32o20
Project details

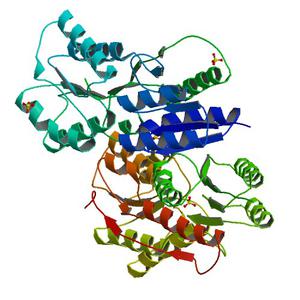

| Title | Crystal structure of transcription regulator CcpA of Lactococcus lactis |
| Authors | Loll, B., Kowalczyk, M., Alings, C., Chieduch, A., Bardowski, J., Saenger, W., Biesiadka, J. |
| R / Rfree | 0.18 / 0.21 |
| Unit cell edges [Å] | 117.76 x 74.27 x 160.30 |
| Unit cell angles [°] | 90.0, 102.4, 90.0 |

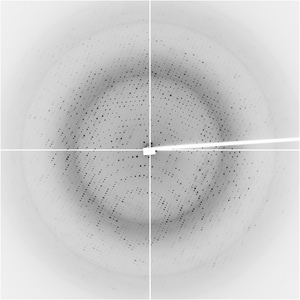

Dataset ccpa_a61_1_###.img details
| Number of frames | 100 (1 - 100) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 80.0 |
| Phi [°] | 80.0 |
| Wavelength [Å] | 0.93300 |
| Experiment Date | 2004-09-19 |
| Equipment | ID14-2 at ESRF (European Synchrotron Radiation Facility) |

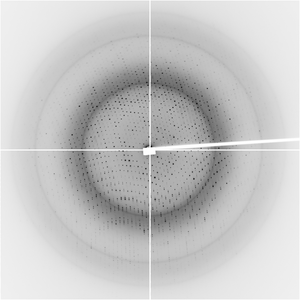

Dataset ccpa_a61_4_###.img details
| Number of frames | 60 (101 - 160) |
| Distance [mm] | 160.1 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 330.0 |
| Phi [°] | 330.0 |
| Wavelength [Å] | 0.93300 |
| Experiment Date | 2004-09-19 |
| Equipment | ID14-2 at ESRF (European Synchrotron Radiation Facility) |
