Diffraction project datasets 2qq8
- Resolution: 2.0 Å
- Space group: P 43 21 2
PDB website for 2QQ8
PDB validation report for 2QQ8
doi:10.18430/m32qq8
Project details

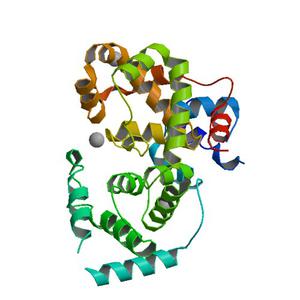

| Title | Crystal structure of the putative RabGAP domain of human TBC1 domain family member 14 |
| Authors | Tong, Y., Tempel, W., Dimov, S., Landry, R., Arrowsmith, C.H., Edwards, A.M., Sundstrom, M., Weigelt, J., Bochkarev, A., Park, H., Structural Genomics Consortium (SGC) |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 123.52 x 123.52 x 48.61 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

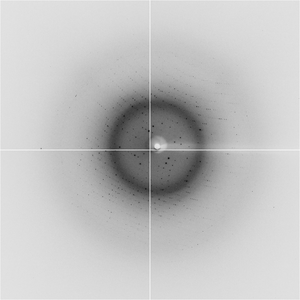

Dataset hr4.4a_1_###.img details
| Number of frames | 230 (1 - 230) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 0.50 |
| Wavelength [Å] | 0.91770 |
| Experiment Date | 2007-04-12 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

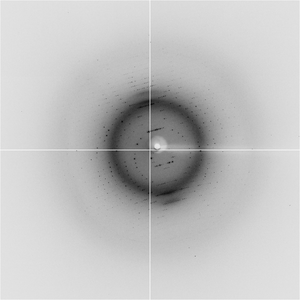

Dataset hr4.4b_1_###.img details
| Number of frames | 310 (231 - 540) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 115.0 |
| Phi [°] | 115.0 |
| Wavelength [Å] | 0.91770 |
| Experiment Date | 2007-04-12 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
