Diffraction project datasets 4f4h
- Method: Molecular Replacement
- Resolution: 1.75 Å
- Space group: P 1 21 1
PDB website for 4F4H
PDB validation report for 4F4H
doi:10.18430/M34F4H
Project details

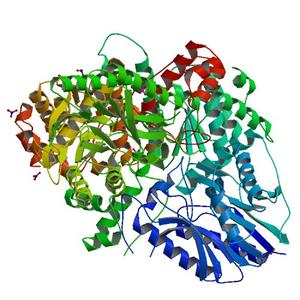

| Title | Crystal structure of a Glutamine dependent NAD+ synthetase from Burkholderia thailandensis |
| Authors | Baugh, L., Gallagher, L.A., Patrapuvich, R., Clifton, M.C., Gardberg, A.S., Edwards, T.E., Armour, B., Begley, D.W., Dieterich, S.H., Dranow, D.M., Abendroth, J., Fairman, J.W., Fox, D., Staker, B.L., Phan, I., Gillespie, A., Choi, R., Nakazawa-Hewitt, S., Nguyen, M.T., Napuli, A., Barrett, L., Buchko, G.W., Stacy, R., Myler, P.J., Stewart, L.J., Manoil, C., Van Voorhis, W.C. |
| R / Rfree | 0.15 / 0.18 |
| Unit cell edges [Å] | 72.09 x 73.08 x 116.89 |
| Unit cell angles [°] | 90.0, 102.8, 90.0 |

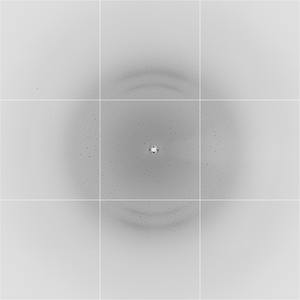

Dataset JBQ5-8_1_###.img details
| Number of frames | 50 (1 - 50) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 66.0 |
| Phi [°] | 66.0 |
| Wavelength [Å] | 1.03320 |
| Experiment Date | 2012-04-06 |
| Equipment | 5.0.2 at ALS (Advanced Light Source) |

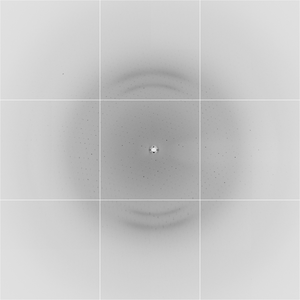

Dataset JBQ5-8_1_###.img details
| Number of frames | 299 (70 - 368) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 100.5 |
| Phi [°] | 100.5 |
| Wavelength [Å] | 1.03320 |
| Experiment Date | 2012-04-06 |
| Equipment | 5.0.2 at ALS (Advanced Light Source) |

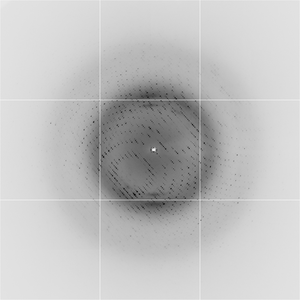

Dataset JQB5-14_1_###.img details
| Number of frames | 280 (1 - 280) |
| Distance [mm] | 195.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 80.0 |
| Phi [°] | 80.0 |
| Wavelength [Å] | 1.03320 |
| Experiment Date | 2012-04-06 |
| Equipment | 5.0.2 at ALS (Advanced Light Source) |
