Diffraction project datasets 4jig
- Method: Molecular Replacement
- Resolution: 1.85 Å
- Space group: F 2 2 2
PDB website for 4JIG
PDB validation report for 4JIG
doi:10.18430/M34JIG
Project details

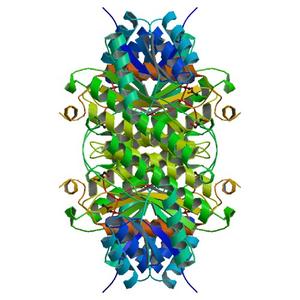

| Title | Crystal structure of a putative dehydrogenase from Burkholderia cenocepacia |
| Authors | Edwards, T.E., Abendroth, J., Seattle Structural Genomics Center for Infectious Disease |
| R / Rfree | 0.15 / 0.20 |
| Unit cell edges [Å] | 73.89 x 102.81 x 123.09 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

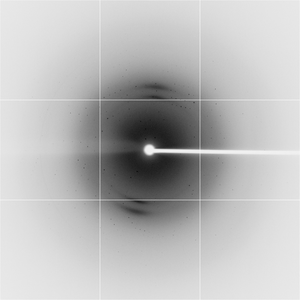

Dataset smk5-3_15_#####.img details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 210.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 90.0 |
| Phi [°] | 90.0 |
| Wavelength [Å] | 1.12709 |
| Equipment | BL7-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
