Diffraction project datasets 4k2w
- Resolution: 1.75 Å
- Space group: P 21 21 21
PDB website for 4K2W
PDB validation report for 4K2W
doi:10.18430/M34K2W
Project details

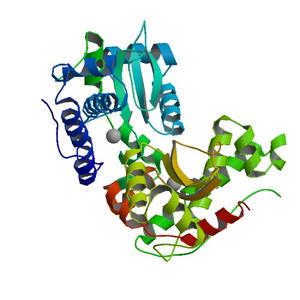

| Title | X-ray crystal structure of superoxide dismutase from Babesia bovis solved by Sulfur/Zinc SAD |
| Authors | Fairman, J.W., Clifton, M.C., Abendroth, J., Edwards, T.E., Lorimer, D. |
| R / Rfree | 0.14 / 0.18 |
| Unit cell edges [Å] | 55.75 x 69.09 x 114.81 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

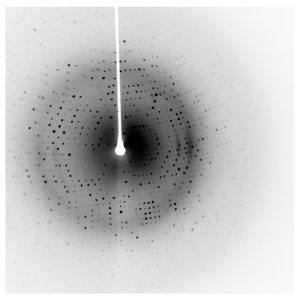

Dataset 236774g7_redo_x####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -80.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

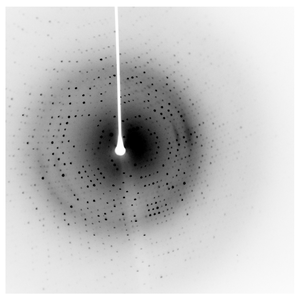

Dataset 236774g7_redo_y####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -80.0 |
| Kappa / Chi [°] | 10.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

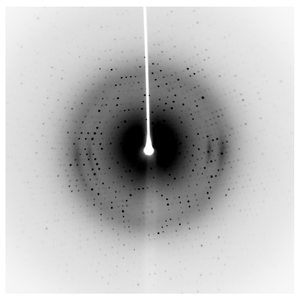

Dataset 236774g7_x####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

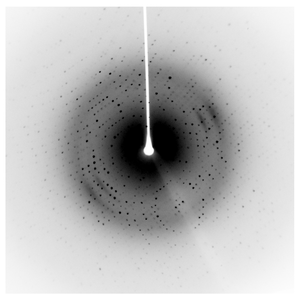

Dataset 236774g7_x####.img details
| Number of frames | 190 (1001 - 1190) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -90.0 |
| Kappa / Chi [°] | 30.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
