Diffraction project datasets 4kyx
- Method: SAD
- Resolution: 1.8 Å
- Space group: P 21 21 21
PDB website for 4KYX
PDB validation report for 4KYX
doi:10.18430/M34KYX
Project details

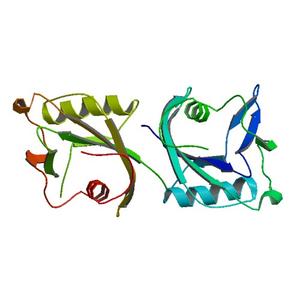

| Title | Crystal structure of ADP-ribose pyrophosphatase MutT from Rickettsia felis |
| Authors | Abendroth, J., Clifton, M.C., Lorimer, D., Edwards, T.E. |
| R / Rfree | 0.21 / 0.26 |
| Unit cell edges [Å] | 60.98 x 63.78 x 71.72 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

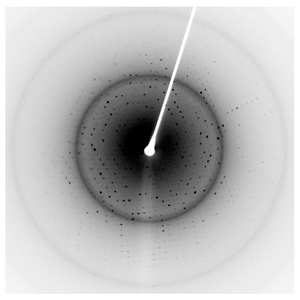

Dataset 241401h10_x####.img details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | MX1 at AS (Australian Synchrotron) |

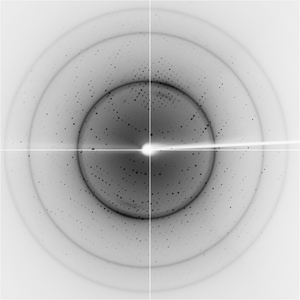

Dataset tui6-9_2_###.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 179.9 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -10.0 |
| Phi [°] | -10.0 |
| Wavelength [Å] | 0.95370 |
| Experiment Date | 2013-05-10 |
| Equipment | MX1 at AS (Australian Synchrotron) |
