Diffraction project datasets 4wkw
- Method: SAD
- Resolution: 2.3 Å
- Space group: C 1 2 1
PDB website for 4WKW
PDB validation report for 4WKW
doi:10.18430/M34WKW
Project details

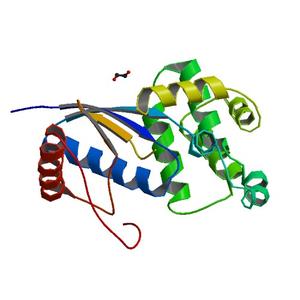

| Title | Crystal Structure of a Conserved Hypothetical Protein from Mycobacterium leprae Determined by Iodide SAD Phasing |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID), Dranow, D.M., Lukacs, C.M., Lorimer, D., Edwards, T.E. |
| R / Rfree | 0.19 / 0.24 |
| Unit cell edges [Å] | 84.57 x 84.19 x 71.71 |
| Unit cell angles [°] | 90.0, 113.5, 90.0 |

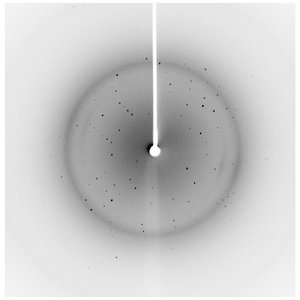

Dataset 257764c5_x####.img details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 60.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

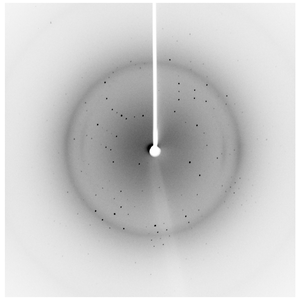

Dataset 257764c5_y####.img details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 60.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -90.0 |
| Kappa / Chi [°] | 10.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

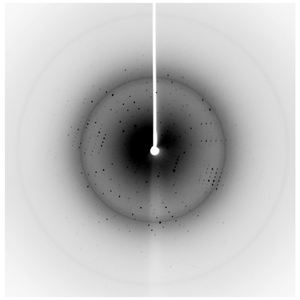

Dataset 257767b1_x####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
